Description

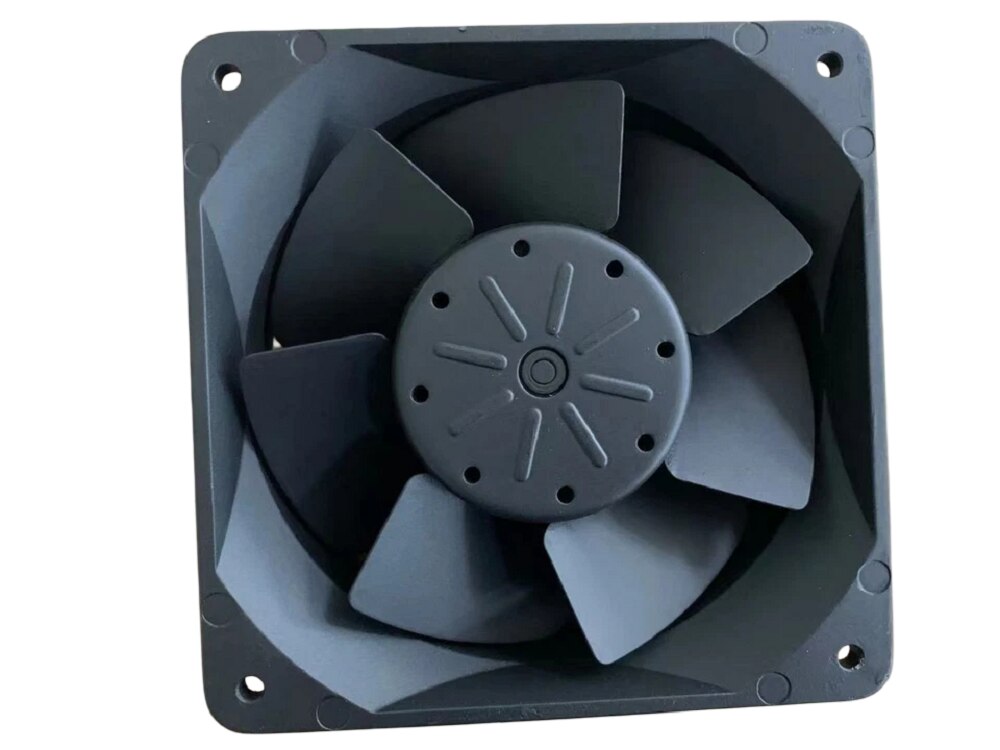

Product Specifications (Colon Format) Product Name: UT626DG-TP DC Brushless Axial Cooling Fan Brand: Royal Fan / Compatible OEM Model Number: UT626DG-TP Product Type: DC Axial Cooling Fan Fan Type: Brushless DC Axial Fan Bearing Type: Ball Bearing Motor Type: Brushless DC (BLDC) Voltage Rating: 12V DC (Verify before ordering) Current Rating: Approx. 0.18 A Power Consumption: Approx. 2.2 W Fan Size: 60 × 60 × 25 mm Dimension (L×W×H): 60 × 60 × 25 mm Air Flow: Up to 24 CFM Fan Speed: 4500 RPM Noise Level: 32 dBA Connector Type: 2 Wire Frame Material: PBT Plastic Blade Material: Thermoplastic Color: Black Mounting Type: Panel Mount Insulation Resistance: 10 MΩ Minimum Operating Temperature: -10°C to +70°C Storage Temperature: -40°C to +85°C
