Description

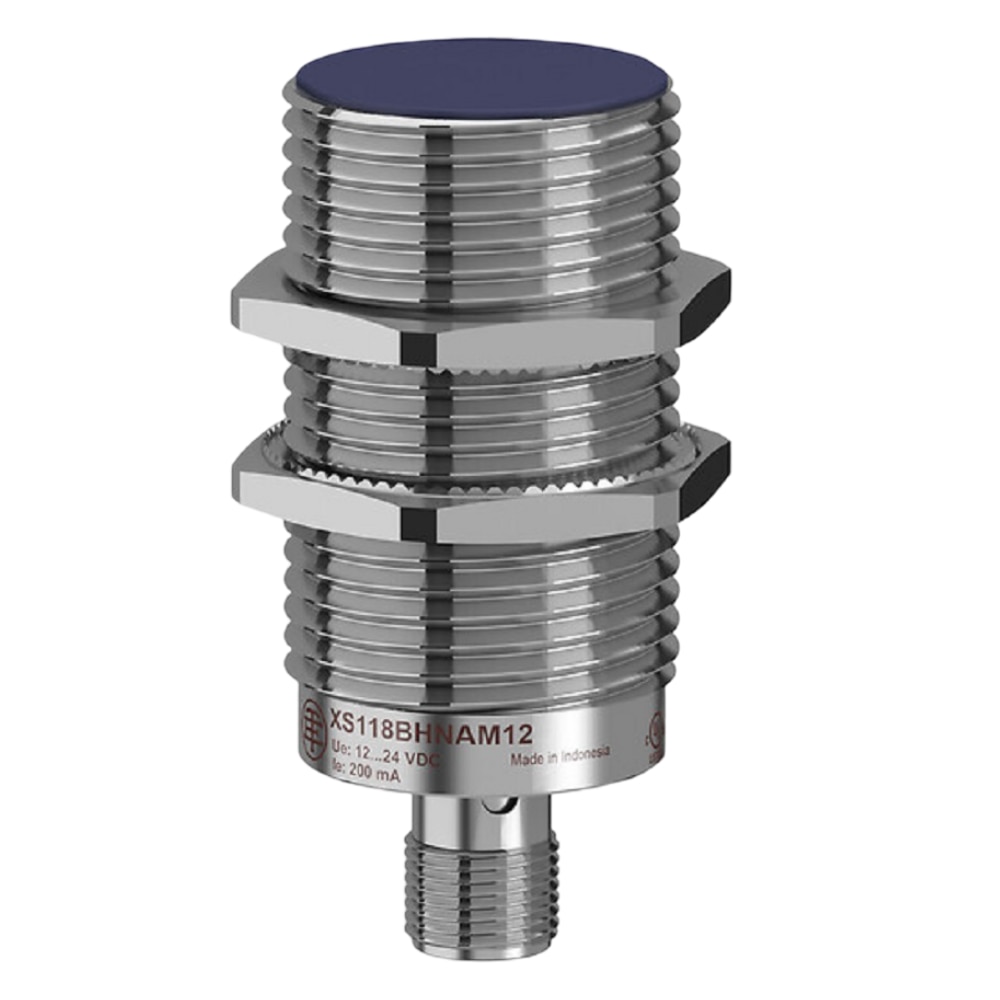

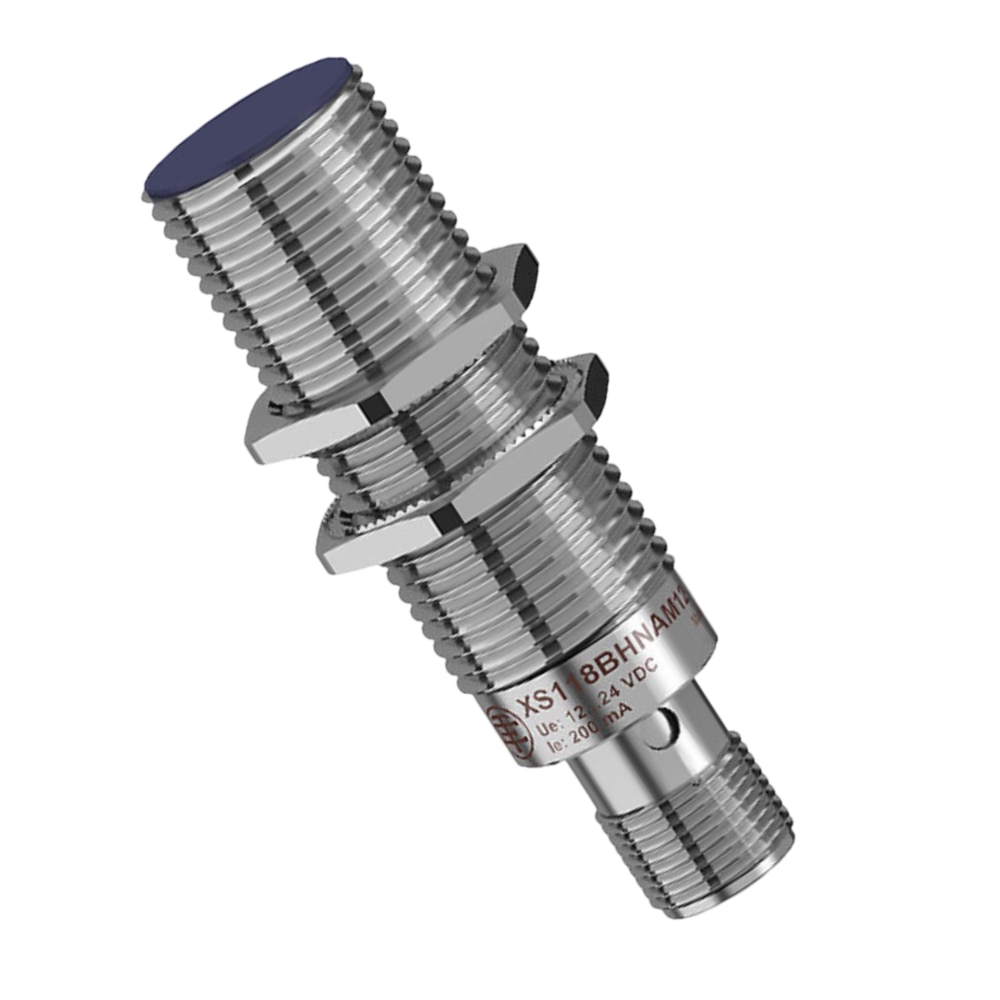

Model : XS118BHNAM12 Type : Inductive Proximity Sensor Brand : Telemecanique Sensors (Schneider Electric) Series : XS1 Series Sensor Design : Cylindrical M18 Body Type : Threaded Barrel Size : 64 mm Mounting Type : Flush Mountable Sensing Distance : 8 mm Operating Zone : 0 to 6.4 mm Output Type : NPN Output Function : NO (Normally Open) Output Signal : Discrete Wiring Type : 3 Wire Electrical Connection : M12 Connector (4 Pin) Supply Voltage : 12 to 24 V DC Current Consumption : ≤ 10 mA (no load) Switching Current : ≤ 200 mA Switching Frequency : Up to 700 Hz Response Time : 0.6 ms Delay First Up : 15 ms Voltage Drop : < 2 V (closed state) IP Rating : IP67 Housing Material : Nickel Plated Brass Front Material : PBT Detection Face : Frontal ISO Thread : M18 x 1 Operating Temperature : -25°C to +70°C Storage Temperature : -40°C to +85°C Shock Resistance : 50 g (11 ms) Vibration Resistance : 25 g (10–55 Hz) Indicator : Yellow LED Output Status Protection Features : Reverse polarity, short circuit, overload protection Certification : CE, UL, CSA Application : Industrial Automation, Metal Detection, Machine Position Sensing Country of Origin : Indonesia
