Description

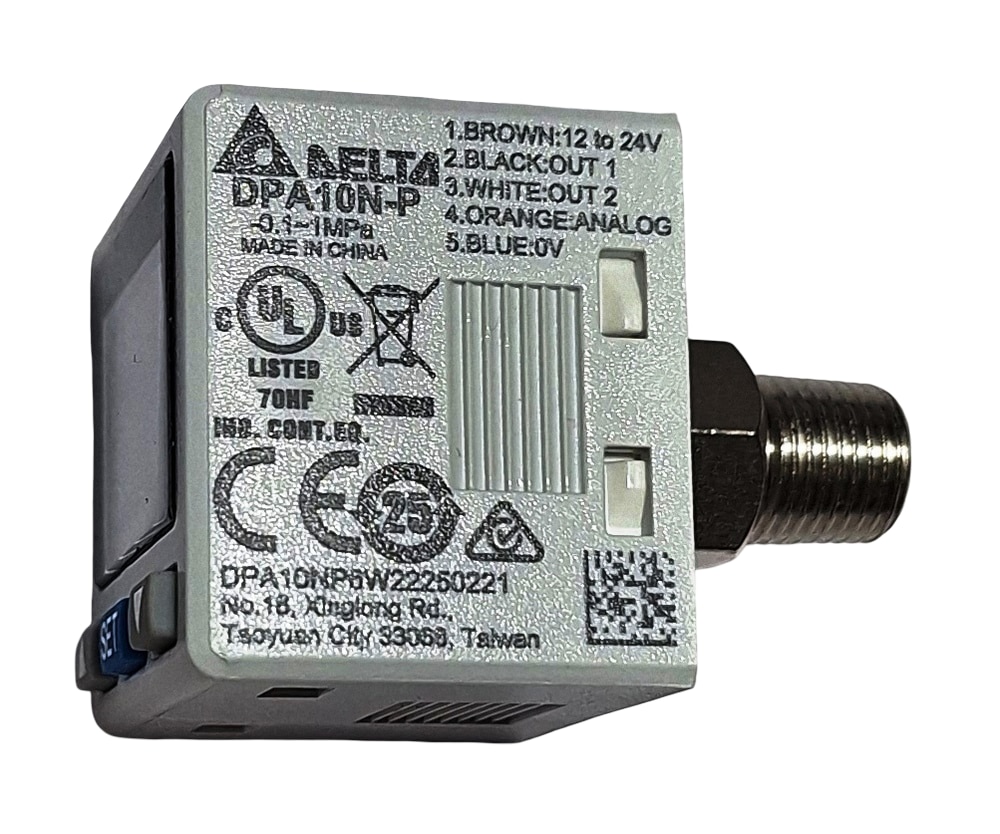

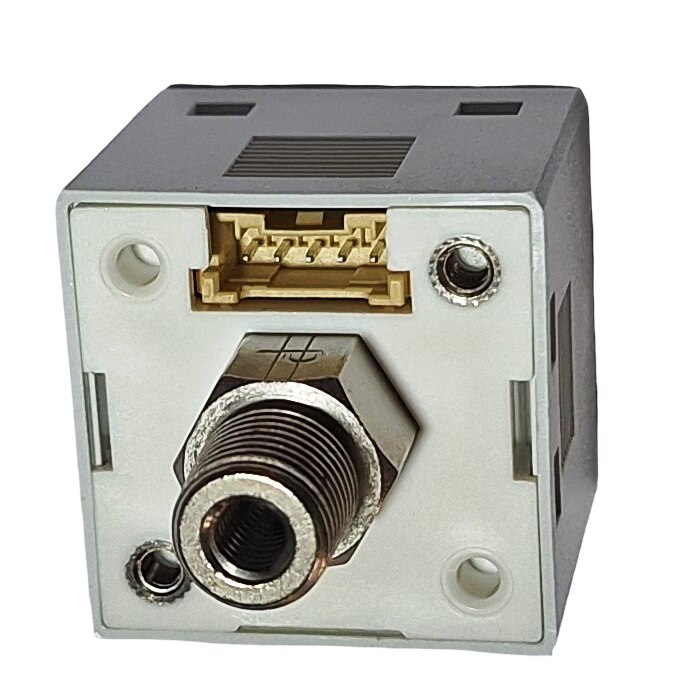

Model : DPA10N-P Type : Digital Pressure Sensor Brand : Delta Electronics Series : DPA Series Pressure Type : Positive and Negative Pressure Measuring Range : -100 kPa to 1000 kPa Output Type : NPN Analog Output : 4 – 20 mA Digital Output : 2 Outputs Supply Voltage : 12 – 24 V DC Current Consumption : 40 mA Max Display Type : 3 Color LCD Display Pressure Units : kPa, bar, psi, mmHg, inchHg, kgf/cm² Response Time : 2 ms – 5000 ms Connection Size : 1/8 PT External, M5 Internal Gas Type : Non-Corrosive Gas Maximum Pressure Resistance : 1500 kPa Operating Temperature : 0°C to 50°C Operating Humidity : 35 – 80% RH Housing Material : Plastic Mounting Type : Panel Mount Protection Feature : Safety Control Function Special Feature : Parameter Copy Function Special Feature : Energy Saving Mode Shock Resistance : High Vibration Resistance : High Dimensions : 30 × 30 × 43.3 mm Application : Pneumatic Systems, Automation, Packaging Machines, Semiconductor Industry Certification : CE
