Description

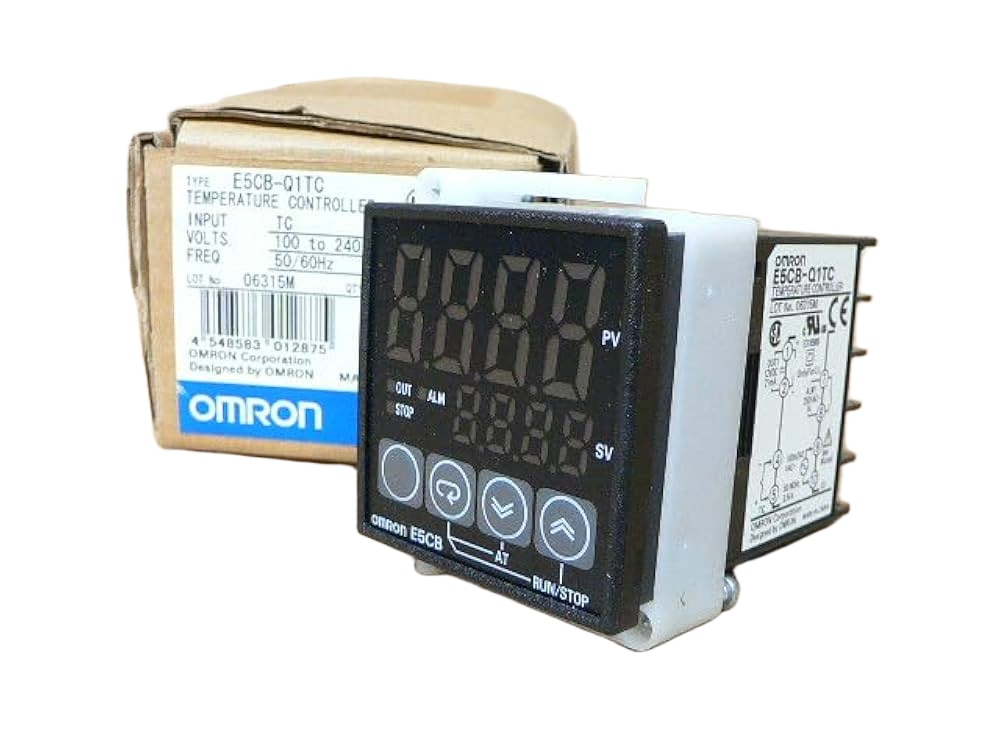

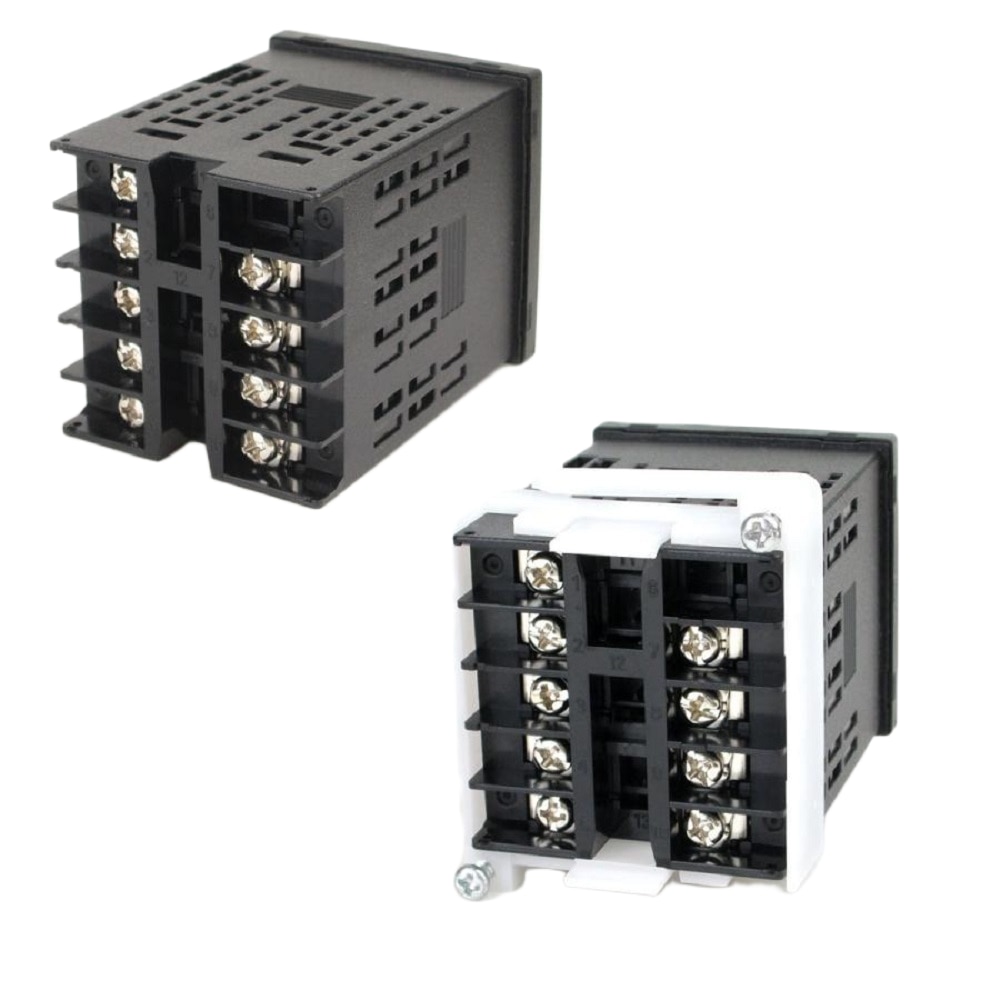

Control Type: PID, On/Off Input Type: Thermocouple, RTD Thermocouple Inputs: K, J, T, E, L, U, N, R, S, B RTD Input: Pt100 Output Type: Relay Output / SSR Drive Output Control Outputs: 1 Output Alarm Output: Available Display Type: Dual LED Display Display Color: Red PV / Green SV Display Resolution: 4 Digit Series: E5CB Mounting Type: Panel Mount Panel Cutout Size: 45 × 45 mm Controller Size: 48 × 48 mm Depth: Approx. 78 mm Supply Voltage: 100–240 VAC, 50/60 Hz Power Consumption: Approx. 5 VA Control Method: PID Control and ON/OFF Control Auto Tuning: Yes Manual Reset: Supported Sampling Period: 250 ms Accuracy: ±0.5% Full Scale Operating Temperature: 0°C to 55°C Storage Temperature: -25°C to 65°C Humidity Range: 25% to 85% RH Front Panel Protection: IP66 Communication: None Memory Backup: EEPROM Wiring Type: Screw Terminal Sensor Burnout Protection: Yes Weight: Approx. 150–200 g Packaging Dimensions: Approx. 10 × 10 × 8 cm Package Weight: Approx. 250 g Application: Industrial Heating Control, Ovens, Furnaces, Packaging Machines, Plastic Machinery, HVAC Systems Brand: Omron
