Description

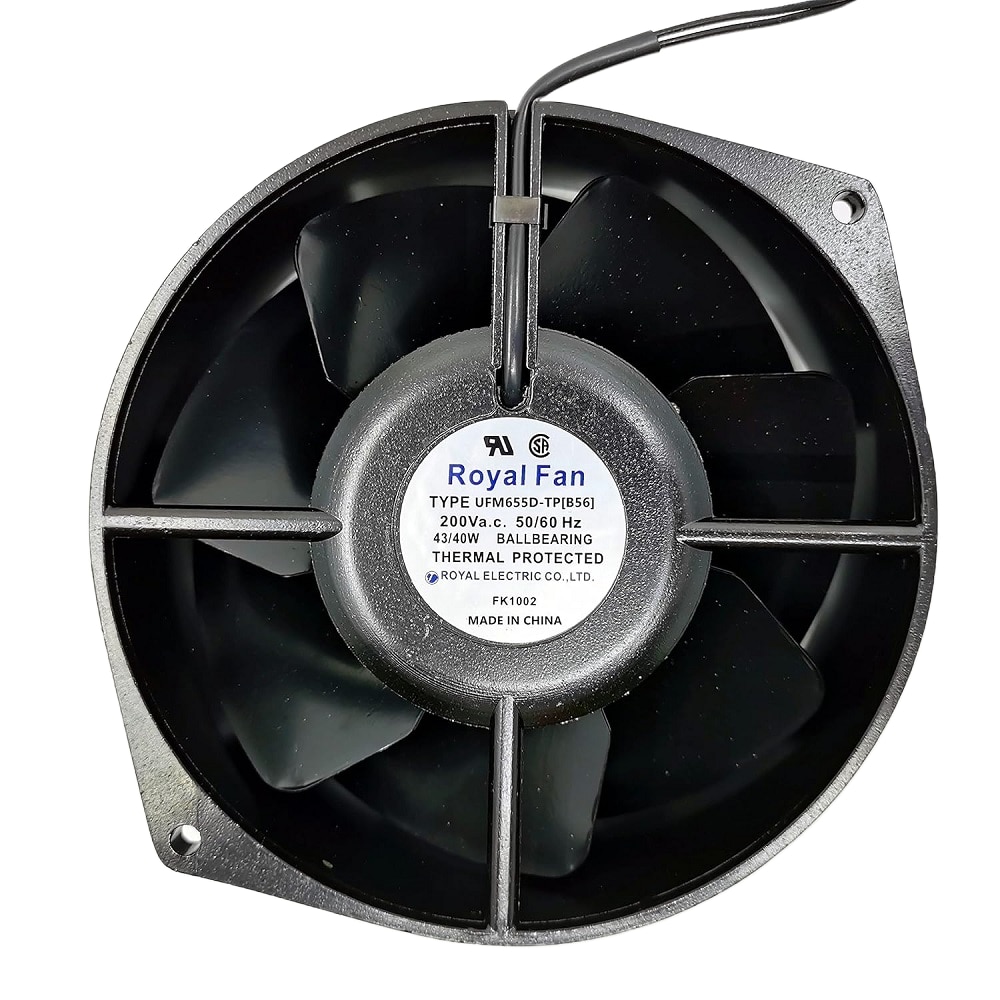

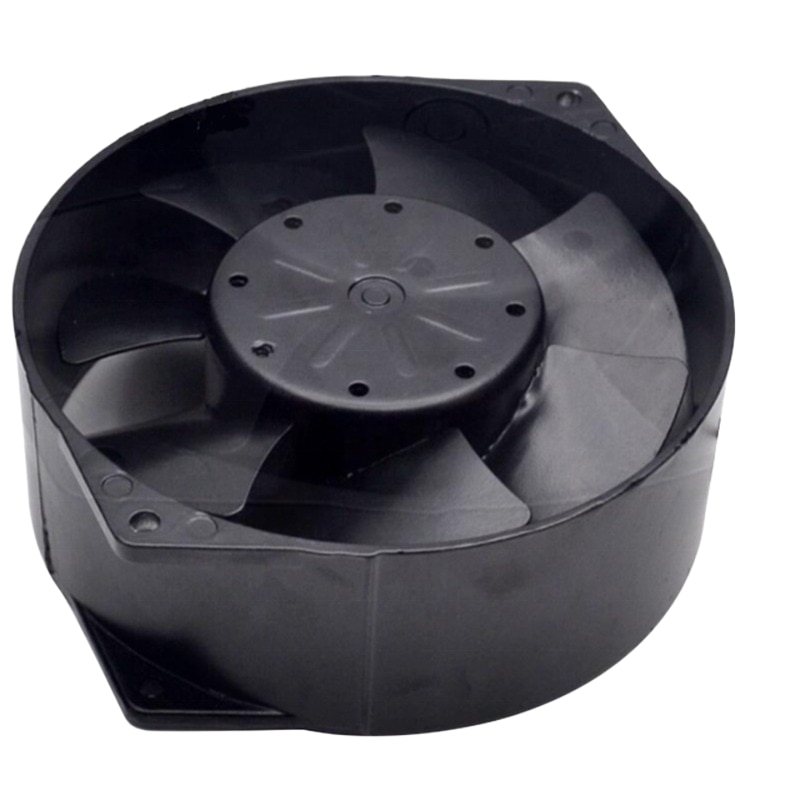

Product Name: Royal Fan UFM655D-TP(B56) AC Axial Cooling Fan Brand: Royal Fan Model Number: UFM655D-TP(B56) Product Type: AC Axial Cooling Fan Fan Type: Axial Cooling Fan Power Supply: AC Rated Voltage: 200 VAC Operating Frequency: 50/60 Hz Power Consumption: 41W / 36W Current Rating: 0.33A / 0.27A Fan Size: 172 × 150 × 55 mm Dimension (L × W × H): 172 × 150 × 55 mm Dimension (Inch): 6.77 × 5.91 × 2.17 Inches Bearing Type: Ball Bearing Motor Type: AC Induction Motor Frame Material: Die-Cast Aluminum Blade Material: Thermoplastic Plastic Connector Type: 2 Wire Color: Black Fan Speed: 2800 RPM Air Flow: 312 / 360 m³/h (Approx. 184 / 212 CFM) Static Pressure: 117 / 137 Pa Noise Level: 56 / 61 dBA Mounting Type: Panel Mount Insulation Resistance: 100 MΩ Minimum Operating Temperature: -10°C to +70°C Storage Temperature: -40°C to +85°C
