Description

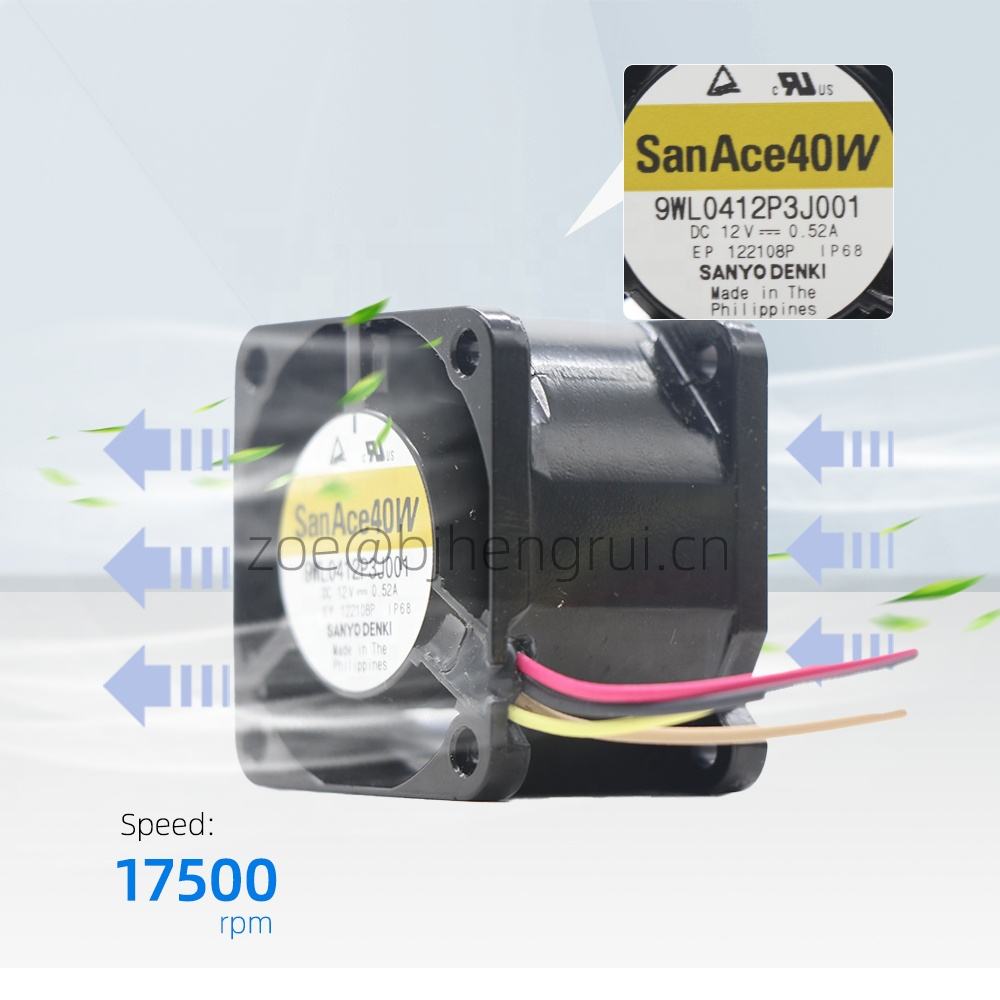

Brand: SANYO DENKI Model No.: 9WL0412P3J001 Series: San Ace 40 (Splash Proof Fan) Fan Type: DC Axial Cooling Fan Fan Size: 40 mm × 40 mm × 28 mm Rated Voltage: 12V DC Operating Voltage Range: 10.8 – 13.2 VDC Current Rating: 0.52 A Power Consumption: 6.24 W Speed: 17,500 RPM Airflow: 22.2 CFM Static Pressure: 1.61 inH₂O Noise Level: 51 dBA Bearing Type: Ball Bearing Sensor Type: Pulse Sensor (Tach Output) PWM Control: Yes Protection Rating: IP68 (Dust & Waterproof) Operating Temperature: -20°C to +70°C Life Expectancy: 150,000 hours @ 60°C Frame Material: Aluminum Mounting Type: Panel Mount
