Description

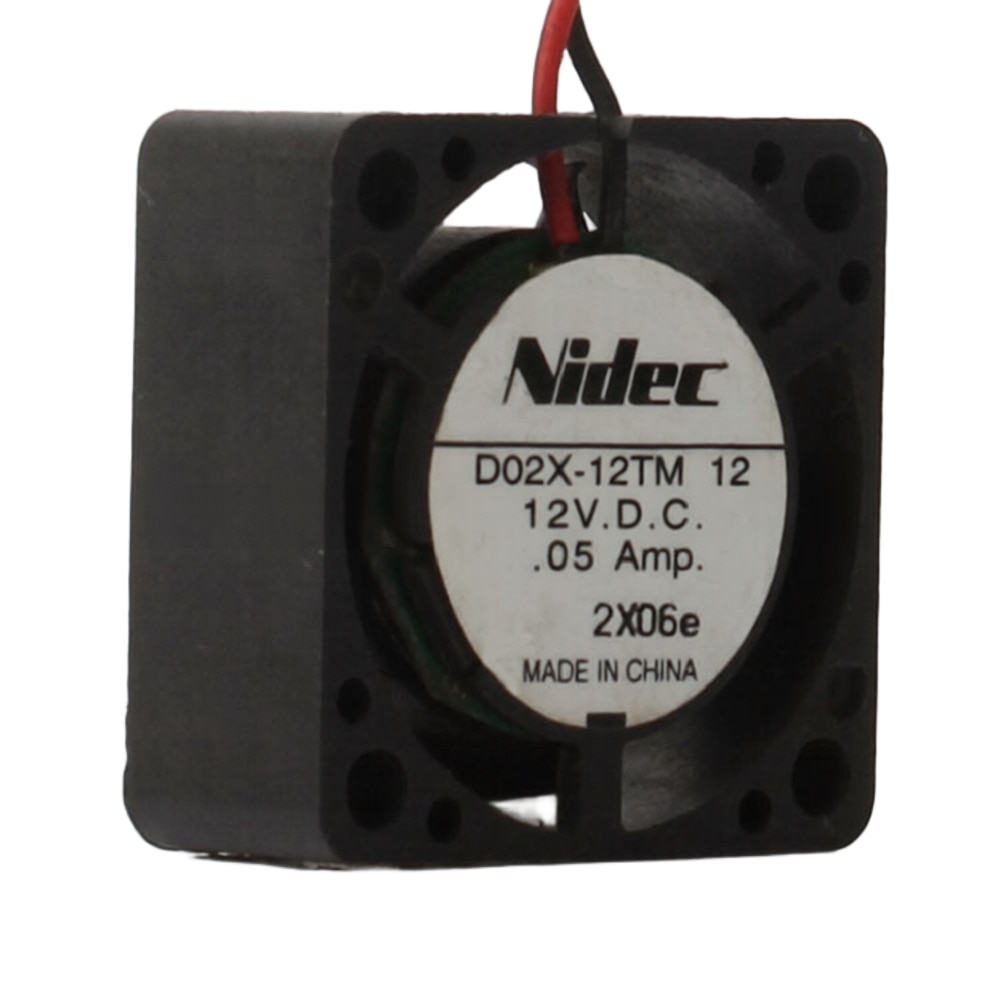

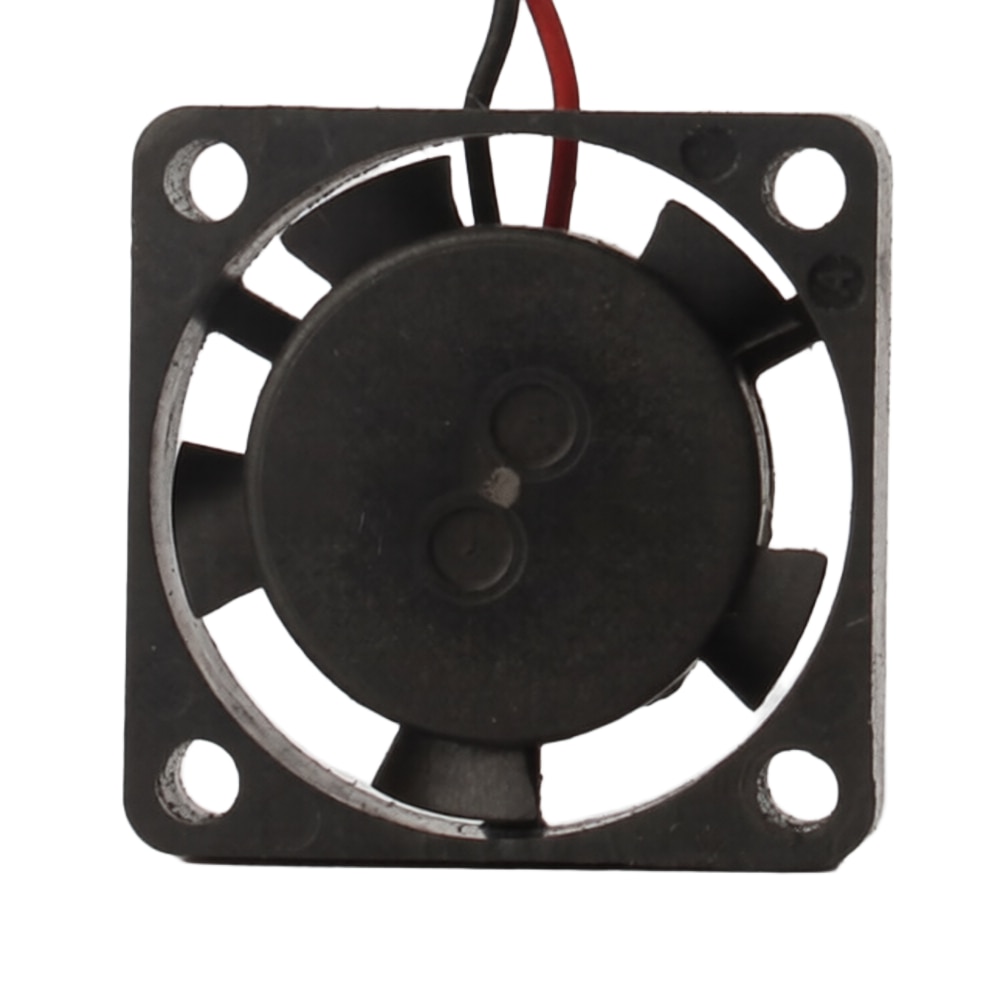

Brand : Nidec Model : D02X-12TM Fan Type : DC Axial Flow Cooling Fan Rated Voltage : 12 V DC Rated Current : 0.05 A Power Consumption : 0.60 W Fan Size : 25 × 25 × 10 mm Bearing Type : Sleeve Bearing / Nidec Bearing Revolution (depending on variant) Number of Wires : 2 Wires Connector Type : Lead Wire Rated Speed : 10,000–12,000 RPM Maximum Airflow : 1.77–2.15 CFM Maximum Static Pressure : 33–45 Pa Noise Level : 19–21 dB(A) Operating Temperature : -10°C to +70°C Life Expectancy : 20,000 Hours Frame Material : Plastic Application : Servers, Networking Equipment, Industrial Electronics, Cooling Systems
