Description

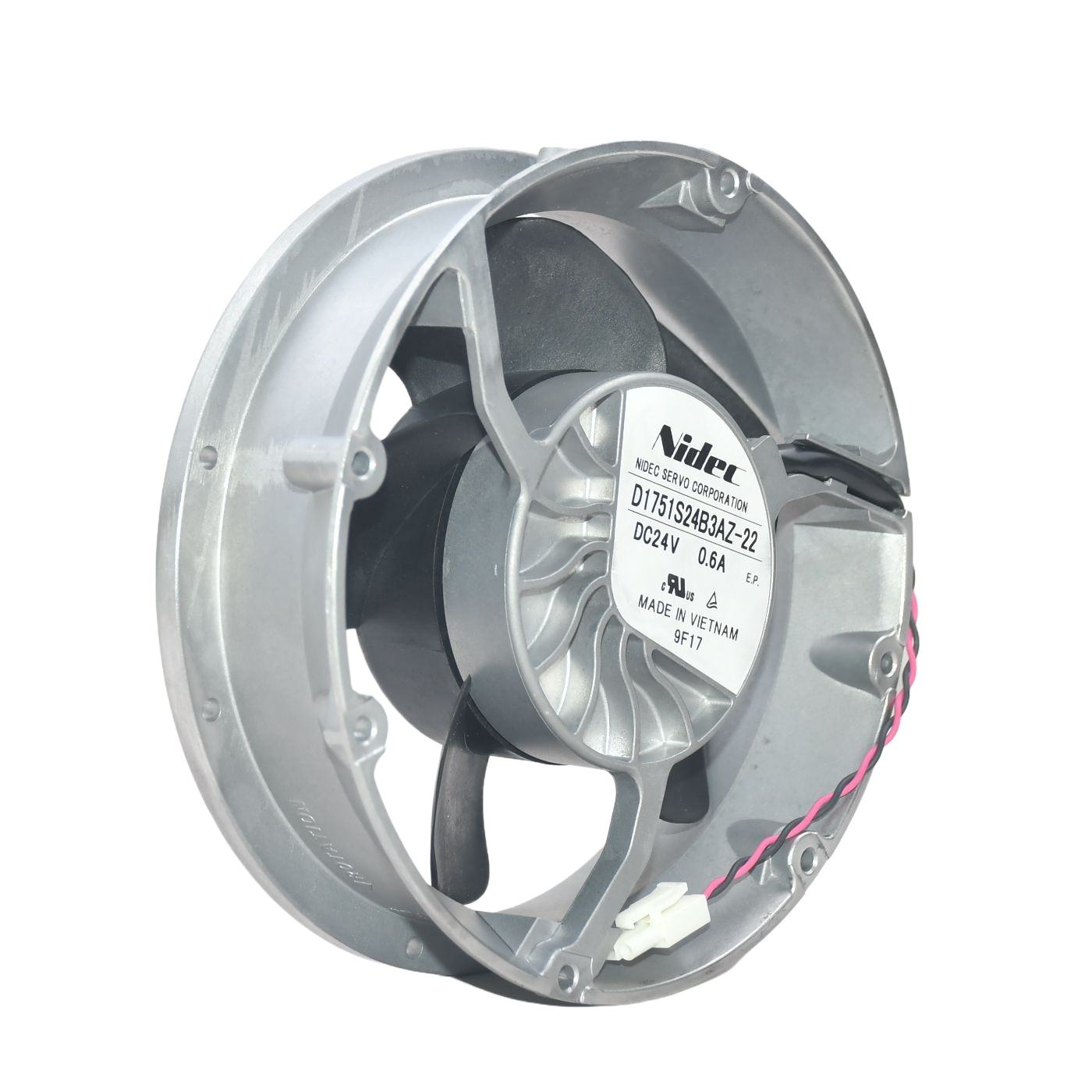

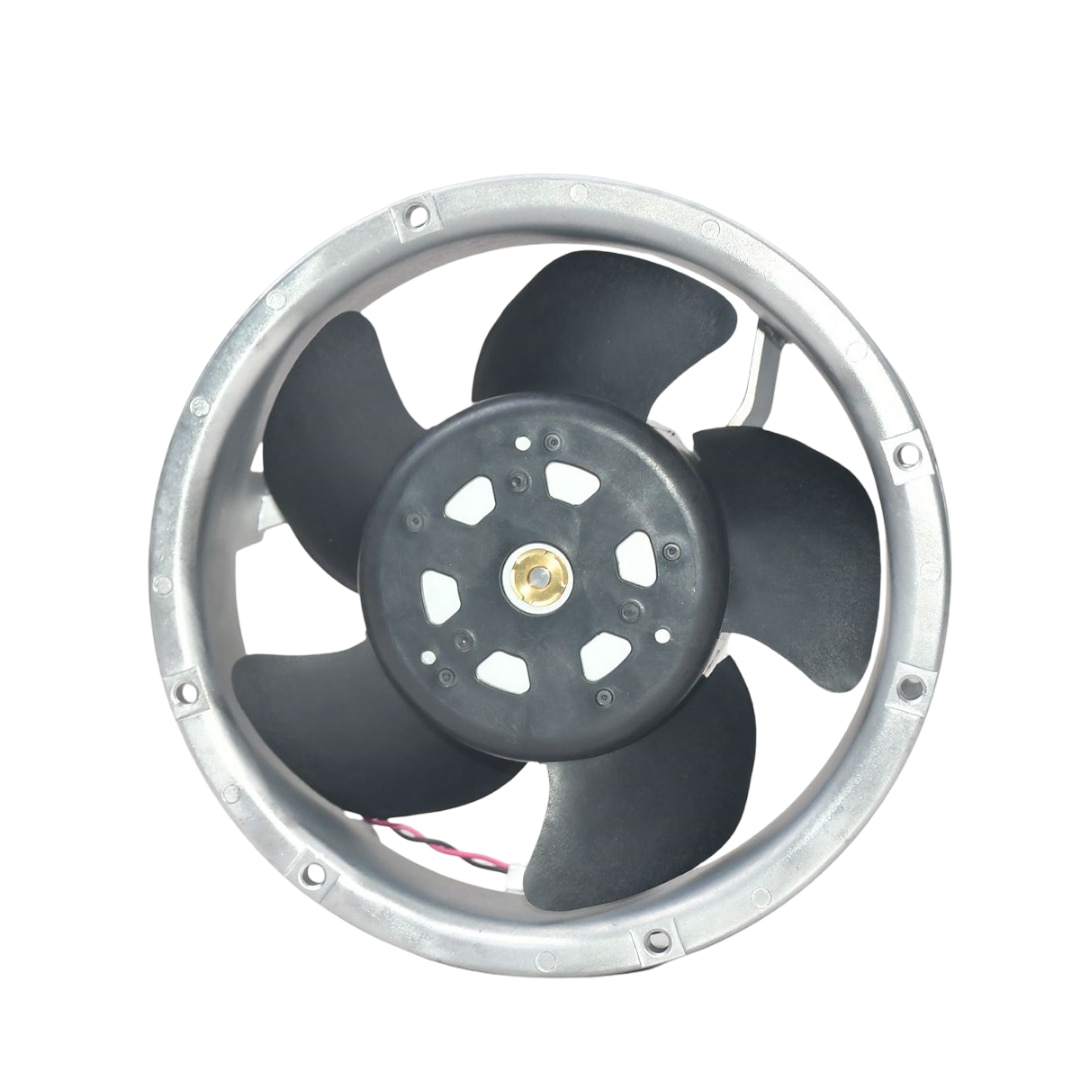

Brand: Nidec Model Number: D1751S24B3AZ-22 Fan Type: DC Axial Cooling Fan Fan Size: 172 mm × 172 mm × 51 mm Rated Voltage: 24V DC Current Rating: 0.60 A Power Consumption: 14.4 W Bearing Type: Double Ball Bearing Fan Speed: Approx. 3200 RPM Airflow: Approx. 190 CFM Static Pressure: Approx. 137 Pa (0.55 inH₂O) Noise Level: Approx. 52 dBA Connector Type: 2-wire lead Frame Material: Die-cast Aluminum Impeller Material: Thermoplastic (PBT, UL94V-0) Operating Temperature: -20°C to +60°C / +70°C (series range)
