Description

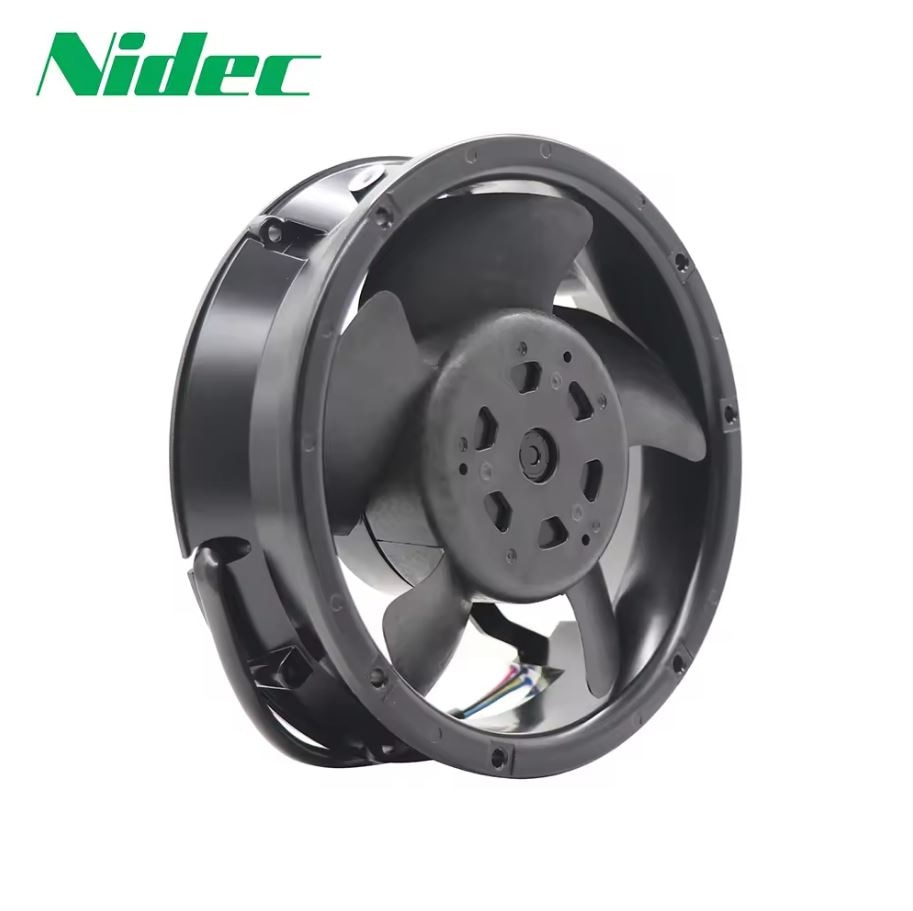

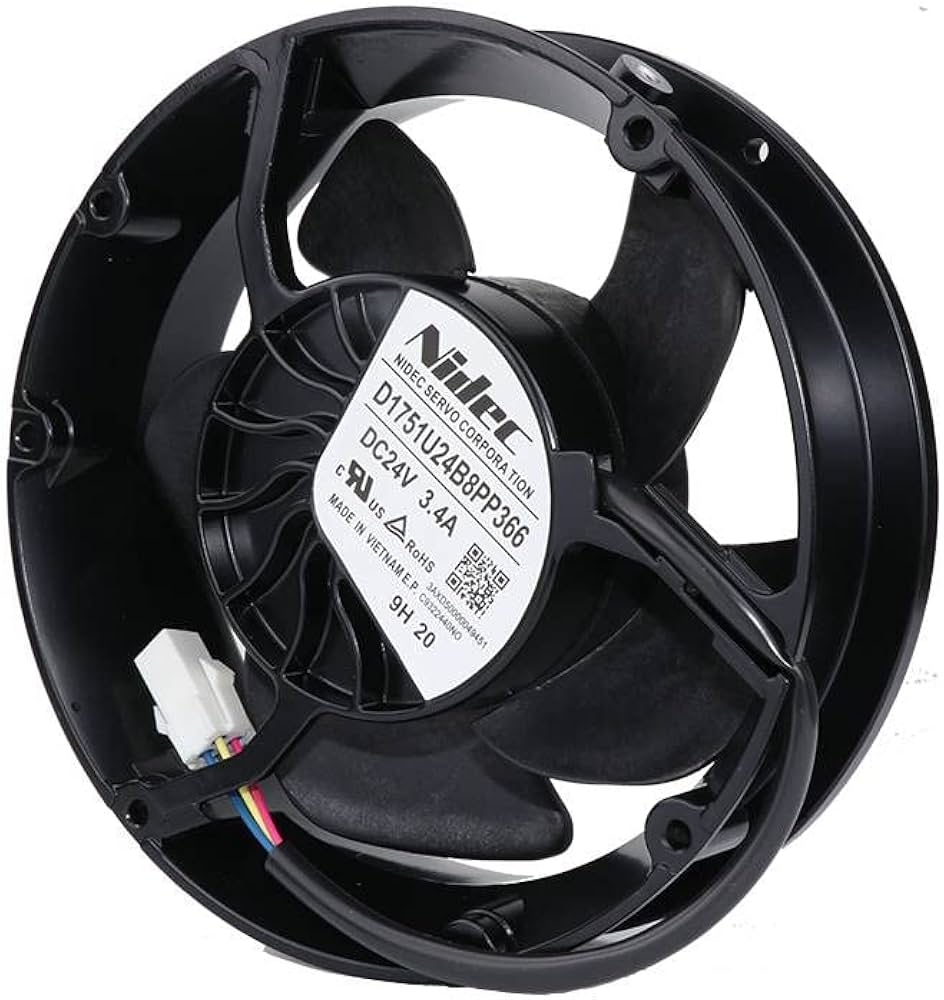

Brand: Nidec Model Number: D1751U24B8PP366 Fan Type: DC Axial Cooling Fan Fan Size: 172 mm × 172 mm × 51 mm Rated Voltage: 24V DC Current Rating: 3.4 A Power Consumption: Approx. 80 W (calculated) Bearing Type: Ball Bearing Connector Type: 4-wire (PWM + FG signal) Fan Diameter: 170–172 mm class Cooling Type: Forced air cooling Frame Material: Metal + Industrial Plastic Mounting Type: Panel / chassis mount Operating Mode: Continuous duty
