Description

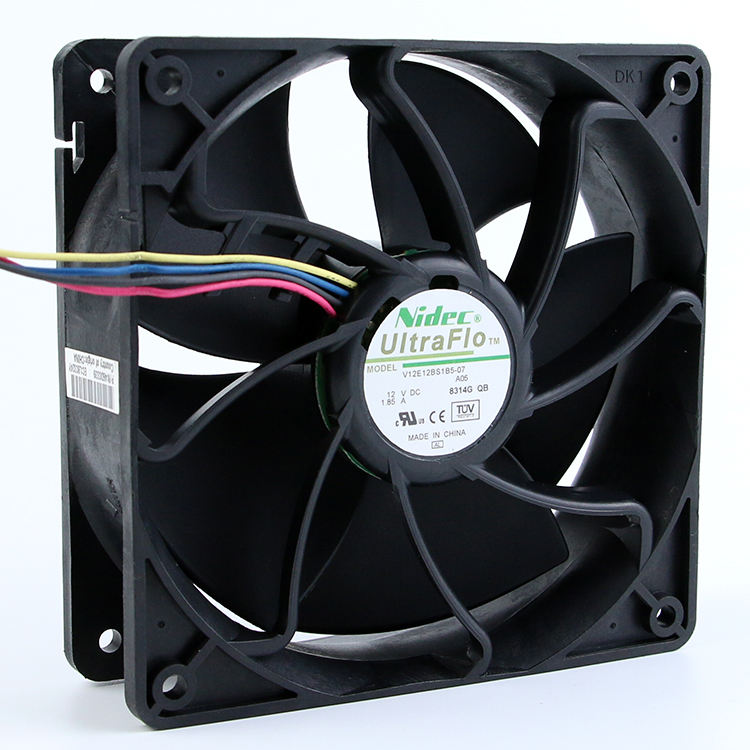

Brand : Nidec Model : V12E12BS1B5-07 Series : UltraFlo Fan Type : DC Axial Cooling Fan Rated Voltage : 12 V DC Operating Voltage Range : 10.2 – 13.8 V DC Rated Current : 1.85 A Rated Power : 22.2 W Fan Size : 120 × 120 × 38 mm Bearing Type : Ball Bearing Rated Speed : 6400 RPM Maximum Airflow : 210 CFM (5.94 m³/min) Maximum Static Pressure : 342 Pa Noise Level : 63 dB(A) Number of Wires : 4 Wires Control Function : PWM Speed Control Signal Output : Tachometer (Speed Sensor) Connector Type : 8-Pin Molex 44133-0800 Operating Temperature : -10°C to +70°C Life Expectancy : 70,000 Hours Weight : 265 g Frame Material : Plastic Application : Servers, ASIC Miners, Telecom Equipment, Industrial Control Systems, High-Performance Cooling Applications.
