Description

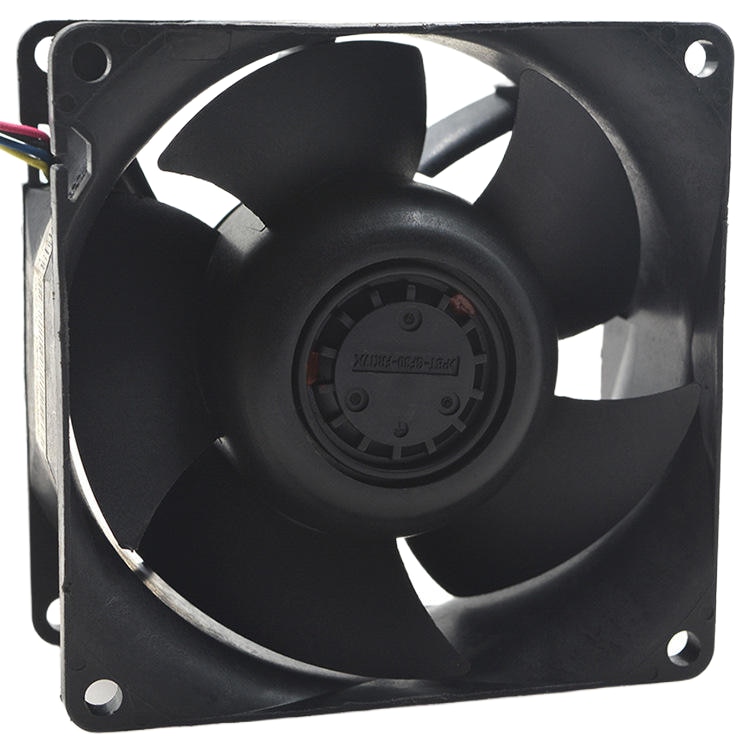

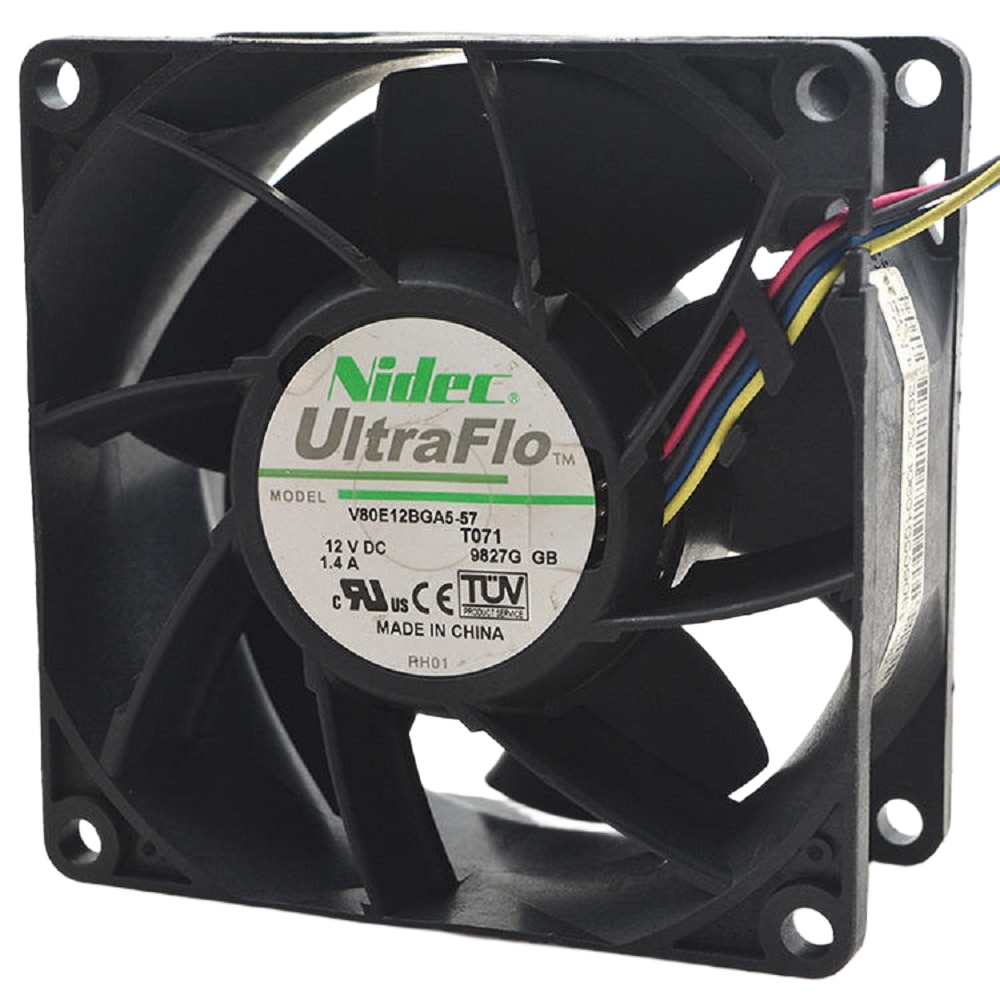

Brand: Nidec Model Number: V80E12BGA5-57 Fan Type: DC Axial Flow Fan Fan Size: 80 mm × 80 mm × 38 mm Rated Voltage: 12V DC Operating Voltage Range: 10.2 – 13.8V DC Current Rating: 1.4 A Power Consumption: Approx. 16 – 17 W (calculated) Bearing Type: Dual Ball Bearing Connector Type: 4-wire (PWM + Tachometer) Speed: Up to ~9500 RPM (high-speed class) Airflow: Up to ~100 CFM Noise Level: Moderate to high (depends on speed) Frame Material: Industrial-grade plastic Mounting Type: Flange / panel mount
