Description

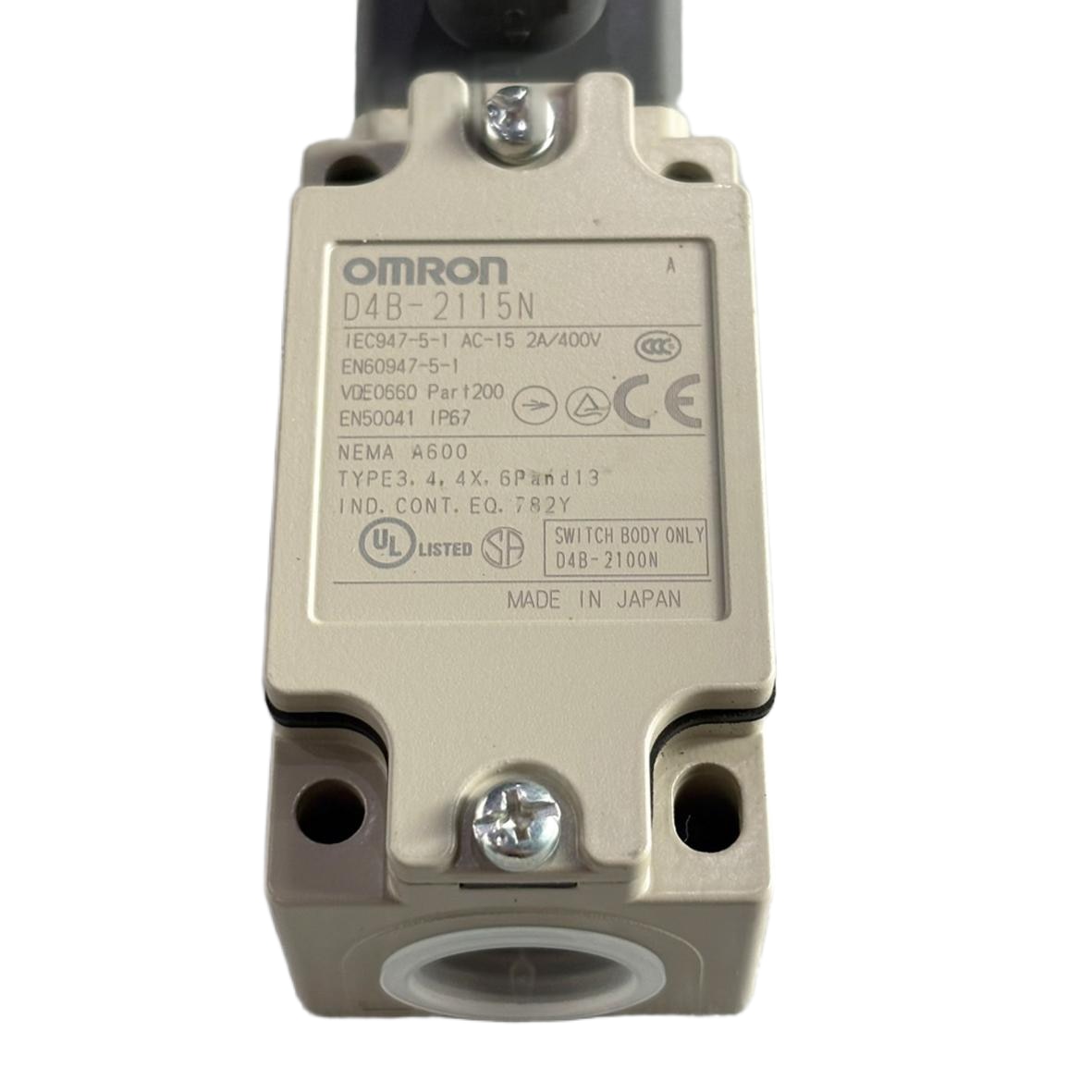

Brand: Omron Model: D4B-2115N Product Type: Safety Limit Switch Actuator Type: Roller Lever (Stainless Steel Roller) Operating Mechanism: Snap Action Contact Configuration: 1 NC + 1 NO Rated Voltage: Up to 400 VAC / 250 VDC Rated Current: 10 A Rated Frequency: 50/60 Hz Protection Rating: IP67 Housing Material: Die-Cast Metal Conduit Size: G1/2 (PF1/2) Terminal Type: Screw Terminal Operating Temperature: -40°C to +80°C Mechanical Life: 30 Million Operations Electrical Life: 500,000 Operations Contact Resistance: 25 mΩ Maximum Insulation Resistance: 100 MΩ Minimum Operating Speed: 1 mm/s to 0.5 m/s Application: Industrial Automation, Machine Safety, Conveyors, Packaging Machines, CNC Machines, Material Handling Systems
