Description

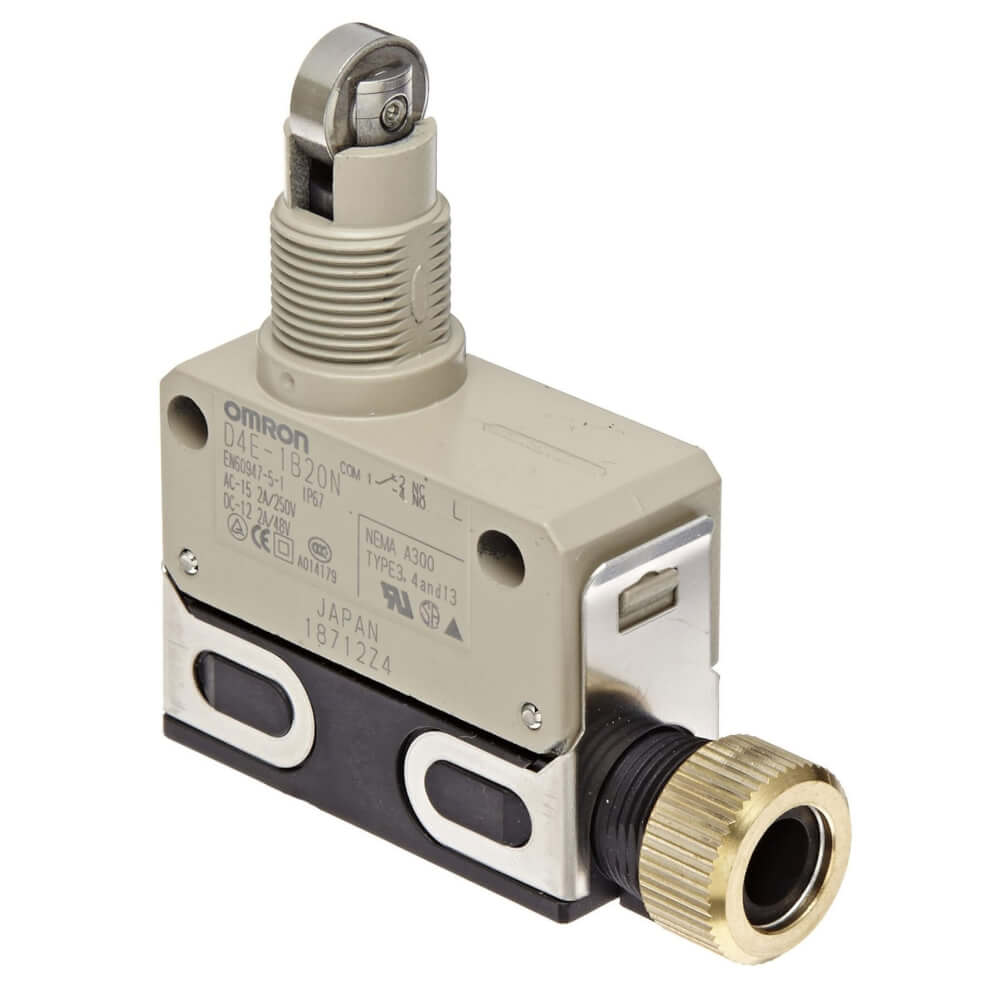

Brand: Omron Model: D4E-1B20N Product Type: Sealed Limit Switch Actuator Type: Cross Roller Plunger Contact Configuration: SPDT (1 NO + 1 NC) Switch Action: Snap Action Rated Voltage: Up to 250 VAC / 250 VDC Rated Current: 5 A Frequency: 50/60 Hz Protection Rating: IP67 Housing Material: Zinc Alloy Connection Type: Screw Terminal Insulation Resistance: 100 MΩ Minimum Contact Resistance: 15 mΩ Maximum Mechanical Life: 10 Million Operations Electrical Life: 500,000 Operations Operating Temperature: -10°C to +80°C Operating Speed: 0.1 mm/s to 0.5 m/s Application: Industrial Automation, Packaging Machines, Conveyors, Material Handling Equipment, CNC Machines
