Description

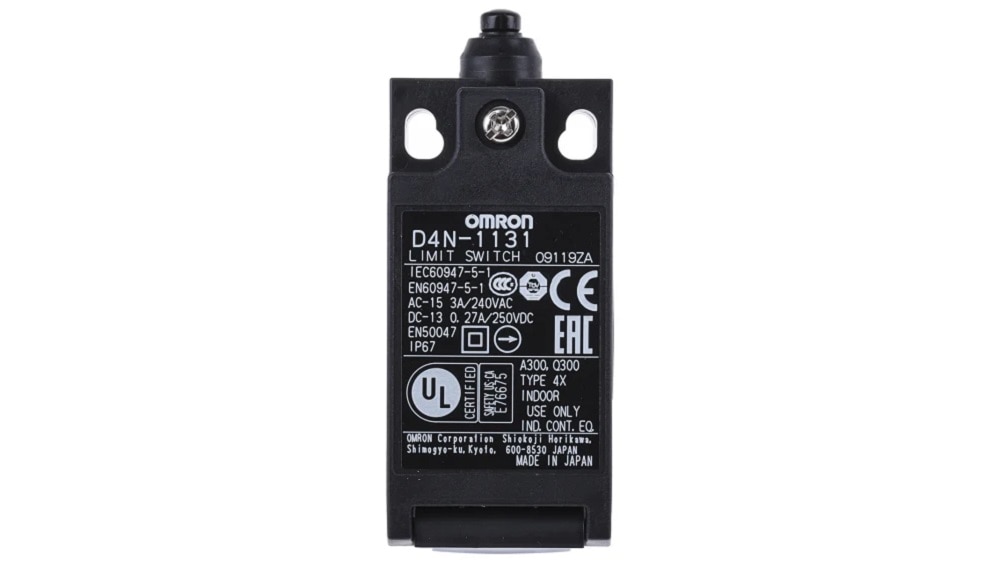

Actuator Type: Top Plunger, Ø6 mm Resin Plunger Operating Mechanism: Snap Action Contact Configuration: 1NC + 1NO Rated Current: 10 A Rated Voltage: 240 V AC / 250 V DC Max Housing Material: Plastic Protection Class: IP67 Cable Entry: PG13.5, 1-Conduit Connection Method: Terminal Block Mounting Type: Panel Mount Operating Temperature: -30°C to +70°C Operating Humidity: 95% RH Max Operating Frequency: 30 Operations/Minute Max Switching Frequency: 2 Hz Max Contact Resistance: 25 mΩ Max Insulation Resistance: 100 MΩ Min Shock Resistance: 1000 m/s² Vibration Resistance: 10 to 55 Hz, 0.75 mm Single Amplitude Body Dimensions: 64 x 31 x 30 mm Mounting Hole Pitch: 20 to 22 mm Weight: Approx. 88.2 g Package Dimensions: Approx. 8 x 5 x 4 cm
