Description

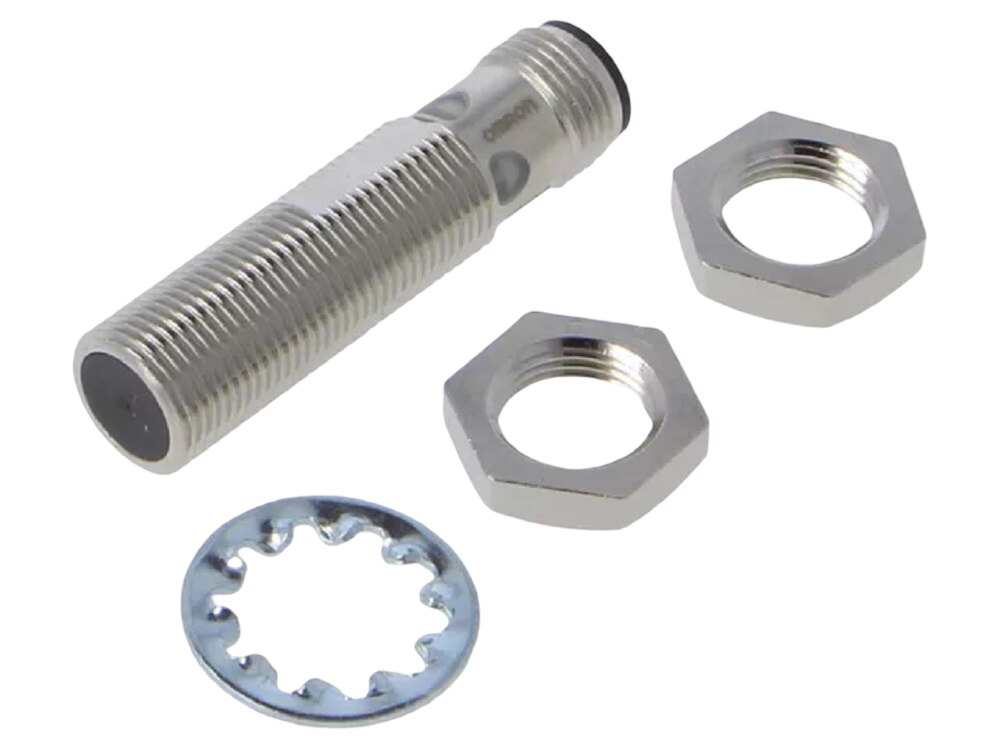

Brand : Omron Model Number : E2E-X3D1-M1G Series : E2E Series Sensor Type : Inductive Proximity Sensor Sensing Method : Inductive Sensing Distance : 3 mm Sensing Mode : Shielded Output Type : DC 2-Wire Operation Mode : Normally Open (NO) Supply Voltage : 10 to 30 VDC Switching Current : 3 to 100 mA Response Frequency : 1 kHz Connection Type : M12 Connector Housing Type : Cylindrical Threaded Type Sensor Size : M12 Housing Material : Brass Nickel Plated Sensing Surface Material : PBT Protection Rating : IP67 / IP69K Indicator : Operation Indicator LED Operating Temperature : -25°C to +70°C Storage Temperature : -40°C to +85°C Humidity Range : 35% to 95% RH Insulation Resistance : 50 MΩ Min Shock Resistance : 500 m/s² Mounting Type : Flush Mount / Shielded Mount Application : Metal Object Detection
