Description

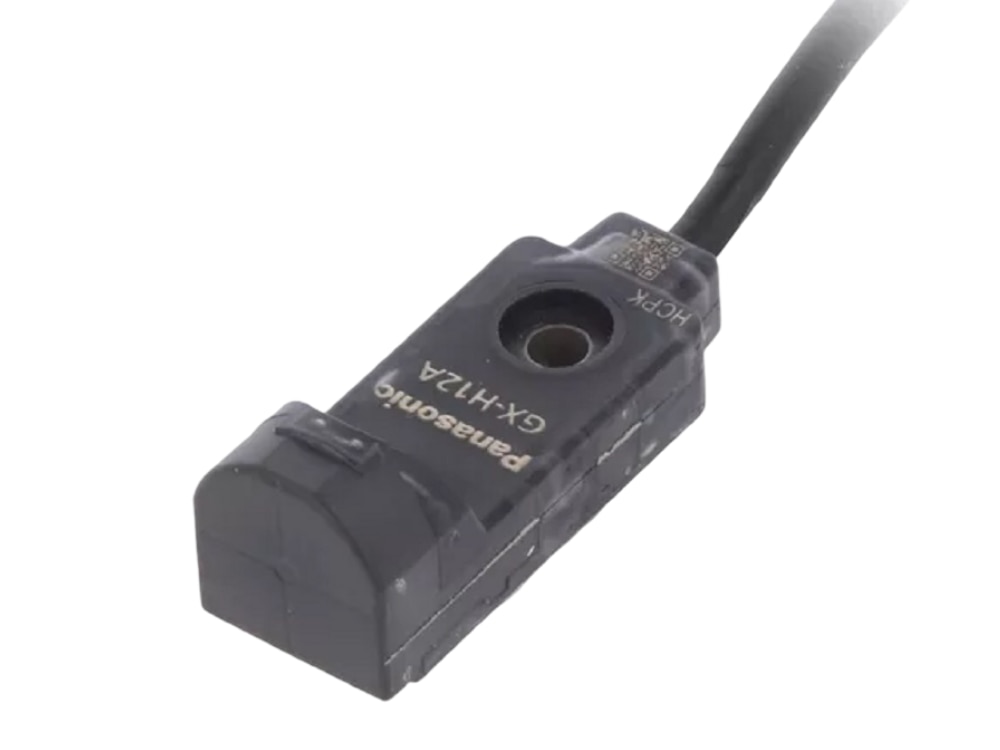

Model : GX-H12A Type : Inductive Proximity Sensor Brand : Panasonic Series : GX Series Diameter : 4 mm Shape : Rectangular Body Type : Rectangular Mounting Type : Non-Flush Output Type : NPN Output Logic : NO Sensing Distance : 4 mm Stable Sensing Range : 0 – 3.3 mm Standard Target : Iron Plate 20 × 20 × 1 mm Supply Voltage : 12 – 24 V DC Current Consumption : 15 mA Max Maximum Load Current : 100 mA Response Frequency : 500 Hz IP Rating : IP68 / IP68g Housing Material : Plastic (PBT) Connection Type : Cable Cable Length : 1 Meter Indicator : Orange LED Operating Temperature : -25°C to +70°C Storage Temperature : -40°C to +85°C Shock Resistance : 1000 G Vibration Resistance : 20 G Repeatability : 0.04 mm Wiring : 3 Wire Brown Wire : +V Blue Wire : 0V Black Wire : Output Application : Industrial Automation Country of Origin : Japan Certification : CE, RoHS, UKCA
