Description

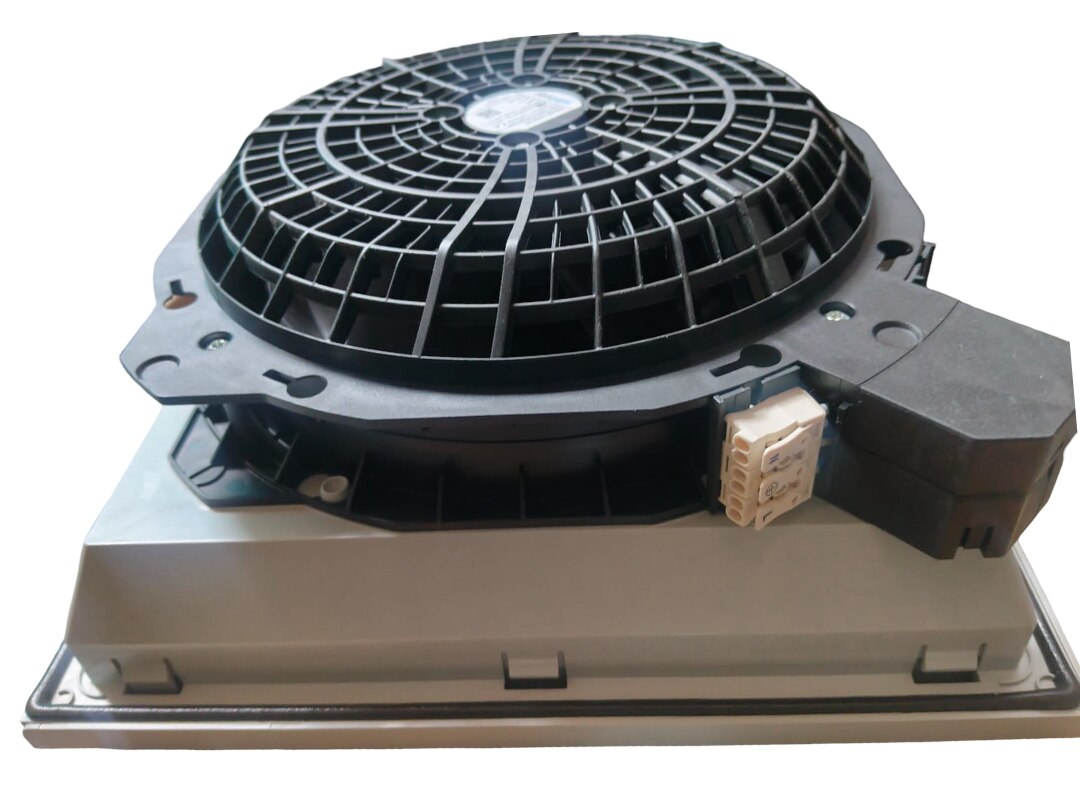

Model : K2E200-AH20-05 Brand : ebm-papst Product Type : AC Axial Cooling Fan Fan Size : 200 mm Air Flow : 600 m³/hr Motor Power : 70 W (50 Hz), 87 W (60 Hz) Speed : 2700 RPM (50 Hz), 3050 RPM (60 Hz) Phase : Single Phase Voltage : 230 VAC Frequency : 50/60 Hz Current : 0.37 A (50 Hz), 0.39 A (60 Hz) Motor Type : M2E068-CF Bearing Type : Ball Bearing Blade Material : PA Plastic Housing Material : PP Plastic (Glass Fiber Reinforced) Number Of Blades : 7 Blades Protection Class : IP44 Insulation Class : Class B Mounting Type : Panel Mounted Electrical Connection : Terminal Box Rotation : Clockwise (Viewed from Rotor Side) Overall Dimensions : 260.1 × 260.1 × 106.5 mm (26.01 × 26.01 × 10.65 cm / 10.24 × 10.24 × 4.19 in) Operating Temperature : -30°C to +55°C Storage Temperature : -25°C to +70°C Noise Level : 61 dB(A) Net Weight : 2.4 kg (5.29 lbs) Gross Weight : Approx. 2.8 kg (6.17 lbs) Packing Dimensions (Approx.) : 300 × 300 × 150 mm (30 × 30 × 15 cm / 11.81 × 11.81 × 5.91 in) Application : Electrical Control Panels, Industrial Cabinets, Server Racks, HVAC Equipment, Automation Systems, Machine Cooling, Switchgear Cabinets, Ventilation Systems. Features : High Airflow Performance, Low Noise Operation, Energy Efficient, Maintenance-Free Ball Bearings, Compact Design, IP44 Protection, Long Service Life, Reliable Continuous-Duty Operation.
