Description

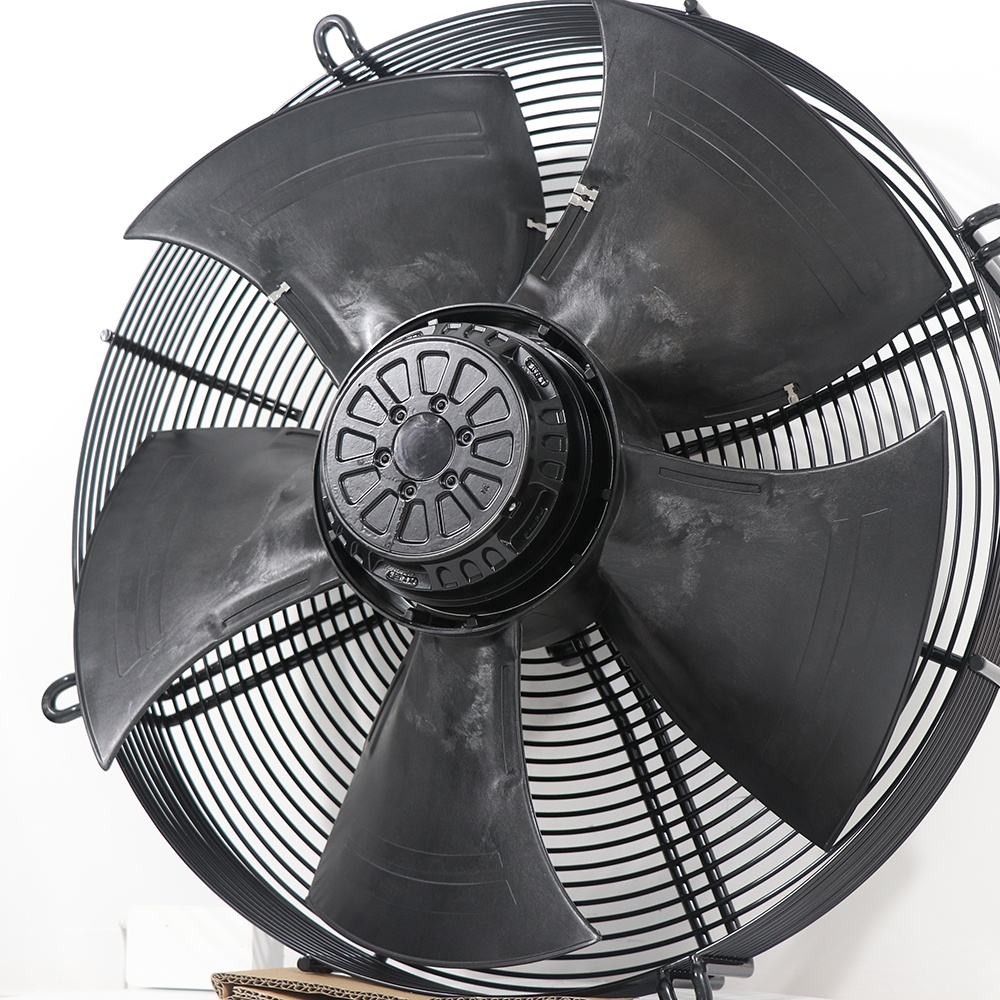

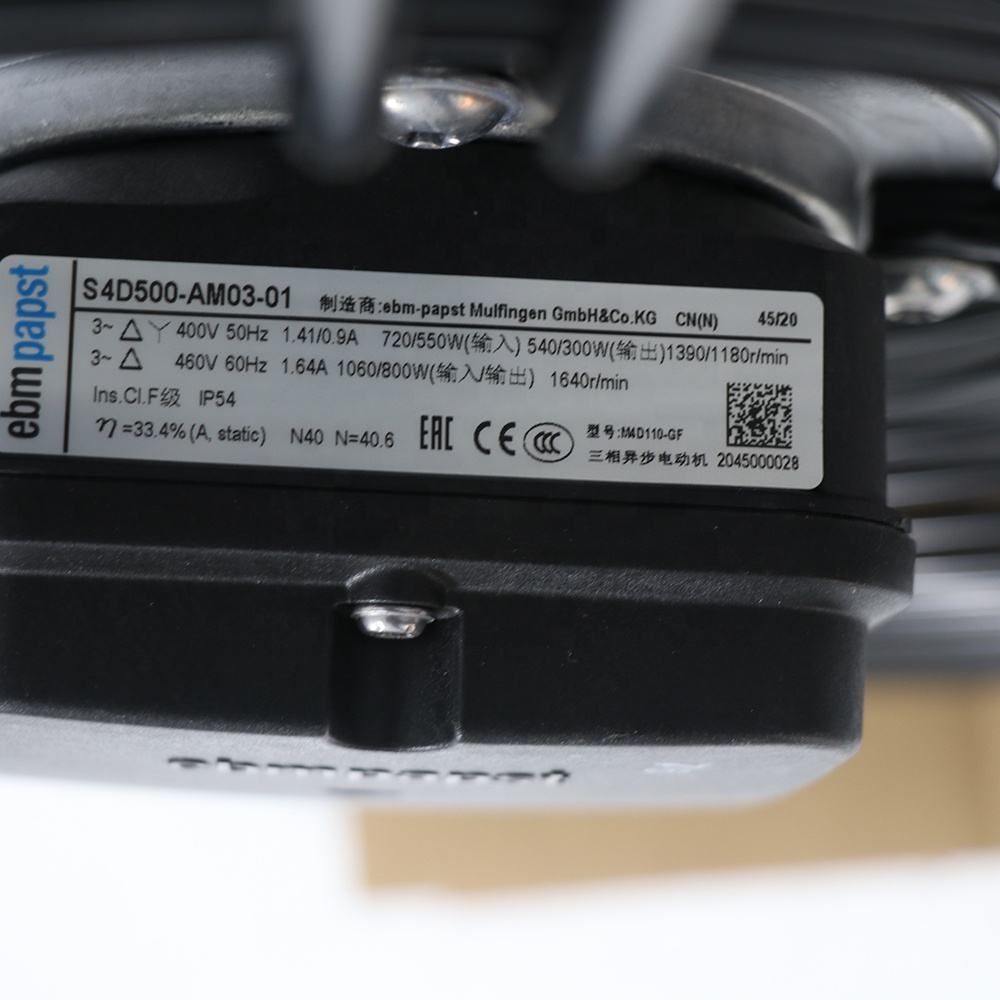

Model : S4D500-AM03-01 Brand : ebm-papst Product Type : AC Axial Cooling Fan Fan Size : 500 mm Air Flow : 5860 m³/hr Motor Power : 720 W Speed : 1390 RPM Phase : Three Phase Voltage : 400 VAC Frequency : 50 Hz Current : 1.41 A Maximum Static Pressure : 140 Pa Blade Material : HyBlade® Composite (PP Plastic over Sheet Steel) Number Of Blades : 5 Blades Bearing Type : Ball Bearing Protection Class : IP54 Insulation Class : Class F Mounting Type : Flange Mounted Air Flow Direction : V Rotation : Counter Clockwise (Viewed from Rotor Side) Motor Type : M4D110-GF Overall Dimensions : 565 × 210 mm (56.5 × 21 cm / 22.24 × 8.27 in) Impeller Diameter : 500 mm (50 cm / 19.69 in) Noise Level : 68 dB(A) Operating Temperature : -40°C to +65°C Electrical Connection : Terminal Box Net Weight : 13 kg (28.66 lbs) Gross Weight : Approx. 13.5 kg (29.76 lbs) Packing Dimensions (Approx.) : 620 × 620 × 270 mm (62 × 62 × 27 cm / 24.41 × 24.41 × 10.63 in) Application : HVAC Systems, Air Handling Units (AHU), Industrial Ventilation, Refrigeration Equipment, Cold Storage, Condensers, Evaporators, Heat Exchangers, Cooling Towers, Electrical Control Panels, Industrial Machinery. Features : HyBlade® Technology, High Airflow Performance, Energy Efficient Motor, Low Noise Operation, Long-Life Ball Bearings, Maintenance-Free Design, IP54 Protection, Heavy-Duty Industrial Construction, Reliable Continuous Operation.
